Intelligent Robotic Arm RB-A850-10

High-performance 7-DOF collaborative robot, specifically designed for precision operations and intelligent manufacturing. Equipped with advanced harmonic motors and intelligent control systems, delivering exceptional precision, flexibility, and reliability.

7 DOF

Seven Degrees of Freedom

Flexible 7-joint design enables complex spatial motion trajectories

10kg

Rated Load

End-effector rated load capacity of 10kg, meeting most industrial application requirements

0.05mm

Ultra-High Precision

±0.05mm repeat positioning accuracy ensures operational accuracy and consistency

Purchase Now

Technical Features

Integrating cutting-edge industrial technology with user-centric design, supported by robust technology to empower intelligent manufacturing, providing efficient, stable, and easy-to-integrate core solutions for various precision operation scenarios.

High-Speed Communication

Supports CAN/EtherCAT communication protocols with up to 4kHz real-time communication rate, millisecond-level response, ensuring precise synchronization of control commands and guaranteeing operational real-time performance and stability.

Open Source Solutions

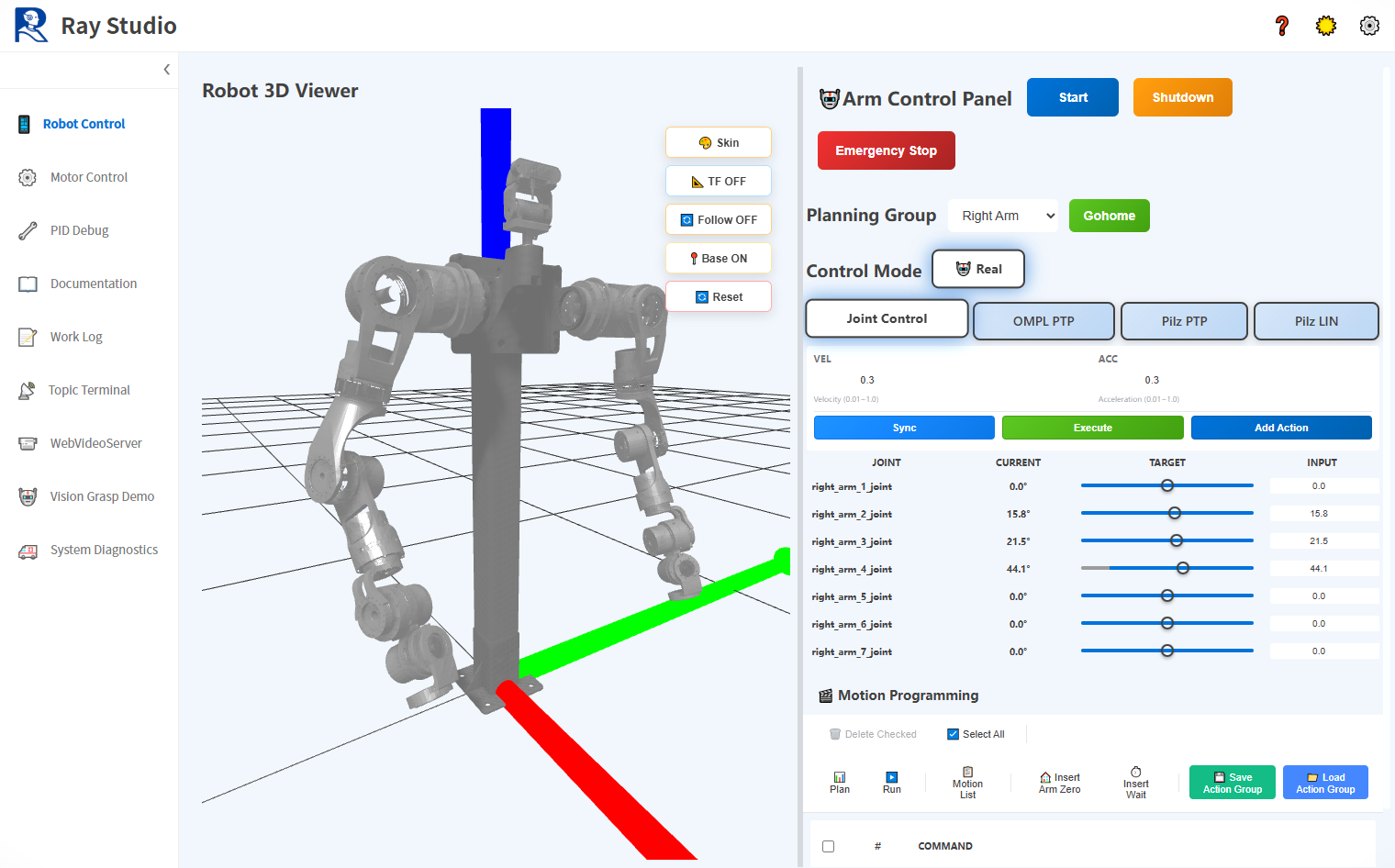

Provides complete open-source robotic arm vision solutions, compatible with various mainstream development environments including ROS2, Python, C++, lowering the barrier for secondary development and adapting to personalized application needs.

Intelligent Planning

Built-in multiple motion planners, supports online action programming, requiring no complex operations, quickly adapting to different workflows, significantly simplifying debugging and operational costs.

Flexible Joints

All 7 joints utilize high-precision harmonic motors, supporting independent variable speed control, enabling smoother and more natural movement.

Safety Protection

IP54 protection rating, dustproof and waterproof, adaptable to a wide operating temperature range, capable of continuous stable operation in various complex industrial environments, reducing equipment failure rates.

Multiple Interfaces

Integrated with various communication interfaces including EtherCAT/CAN/RS485, strong compatibility, facilitating integration with various production line equipment and control systems, flexibly expanding application scenarios.

RB-A850-10 Detailed Technical Specifications

Basic Parameters
Parameter	Value	Parameter	Value
Reach	850mm	J1 Motion Range	±180°
Weight	11.2kg	J2 Motion Range	-180~0°(Left Arm) 0~+180° (Right Arm)
End-Effector Rated Load (Single Arm)	10kg	J3 Motion Range	±180°
Repeat Positioning Accuracy	±0.05mm	J4 Motion Range	-135~+90° (Right Arm) -90~135° (Left Arm)
Rated Voltage	48V	J5 Motion Range	±180°
Rated Power	1000W	J6 Motion Range	±90°
Communication Method	CAN/EtherCAT	J7 Motion Range	±90°

Performance Parameters
Parameter	Specification	Parameter	Specification
Maximum Working Radius	850mm	Protection Rating	IP54
Maximum Linear Speed	0.9m/s	Operating Temperature	0°C ~ 50°C
Joint Maximum Speed	150°/s	Storage Temperature	-20°C ~ 60°C
Controller Communication Interface	EtherCAT/CAN	Installation Method	End face flange installation

Notes:

1. All technical parameters are measured under standard testing conditions; actual use may vary depending on environmental conditions

2. J1-J7 are the 7 joint numbers of the robotic arm, arranged sequentially from the base to the end-effector

3. Rated load refers to the maximum recommended load at the robotic arm's end-effector under normal operating conditions

4. Repeat positioning accuracy data is measured under standard testing conditions
